Overview

Experience the ultimate in monitoring with our Multifunction Meters, delivering essential parameters and advanced load monitoring expertise. Featuring Total Harmonic Distortion (THD) measurement for Voltage and Current, these meters ensure precise power quality analysis. The addition of Maximum Demand measurement with Real-Time Clock elevates their capabilities, offering precise insights into energy consumption patterns. Moreover, the meters showcase phase-wise Voltage and Current waveforms on an LCD for real-time critical data visualization. Tailor your display with the "My Favourite" screen option, and benefit from independently programmable Analog output for versatile configurations. It's the epitome of monitoring convenience and accuracy.

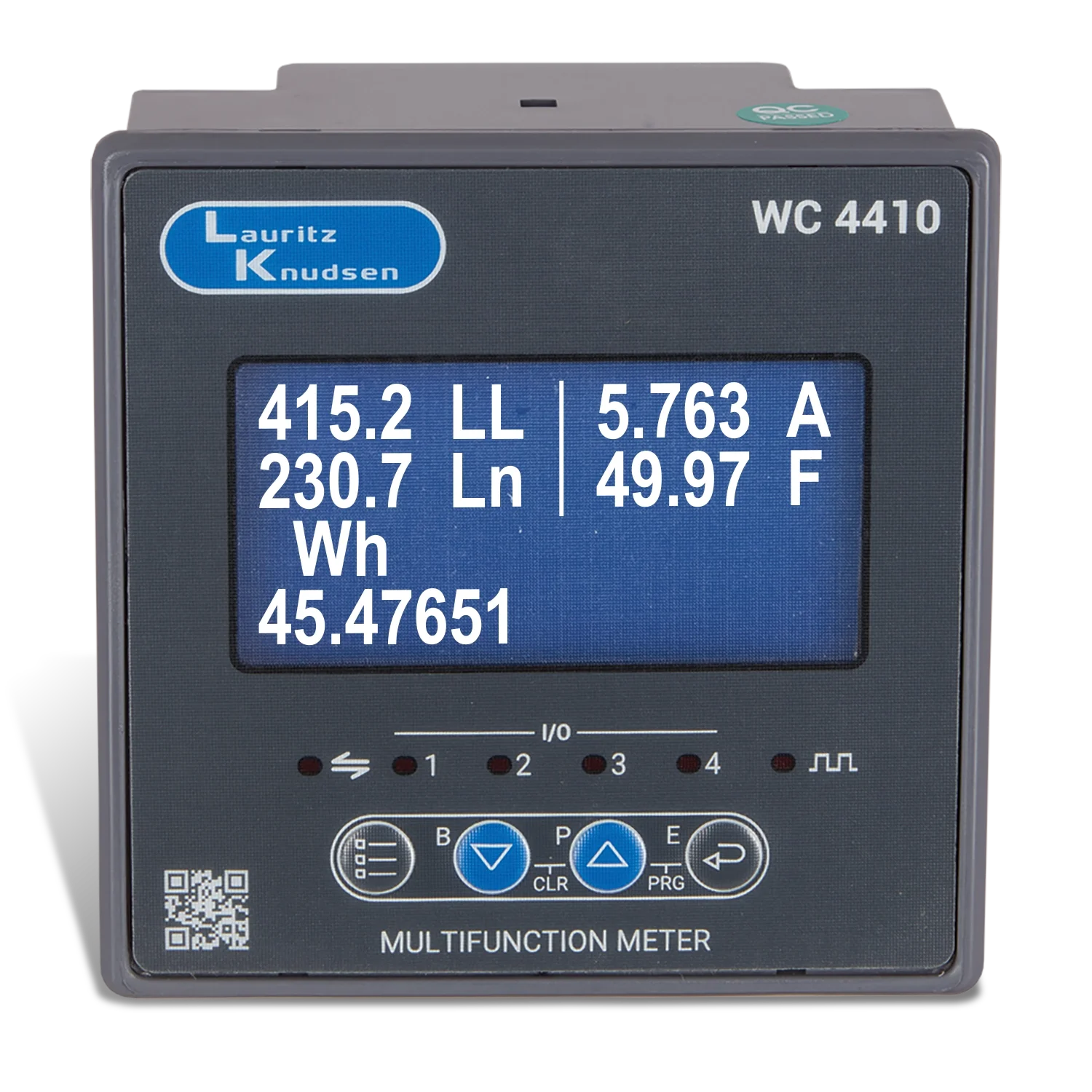

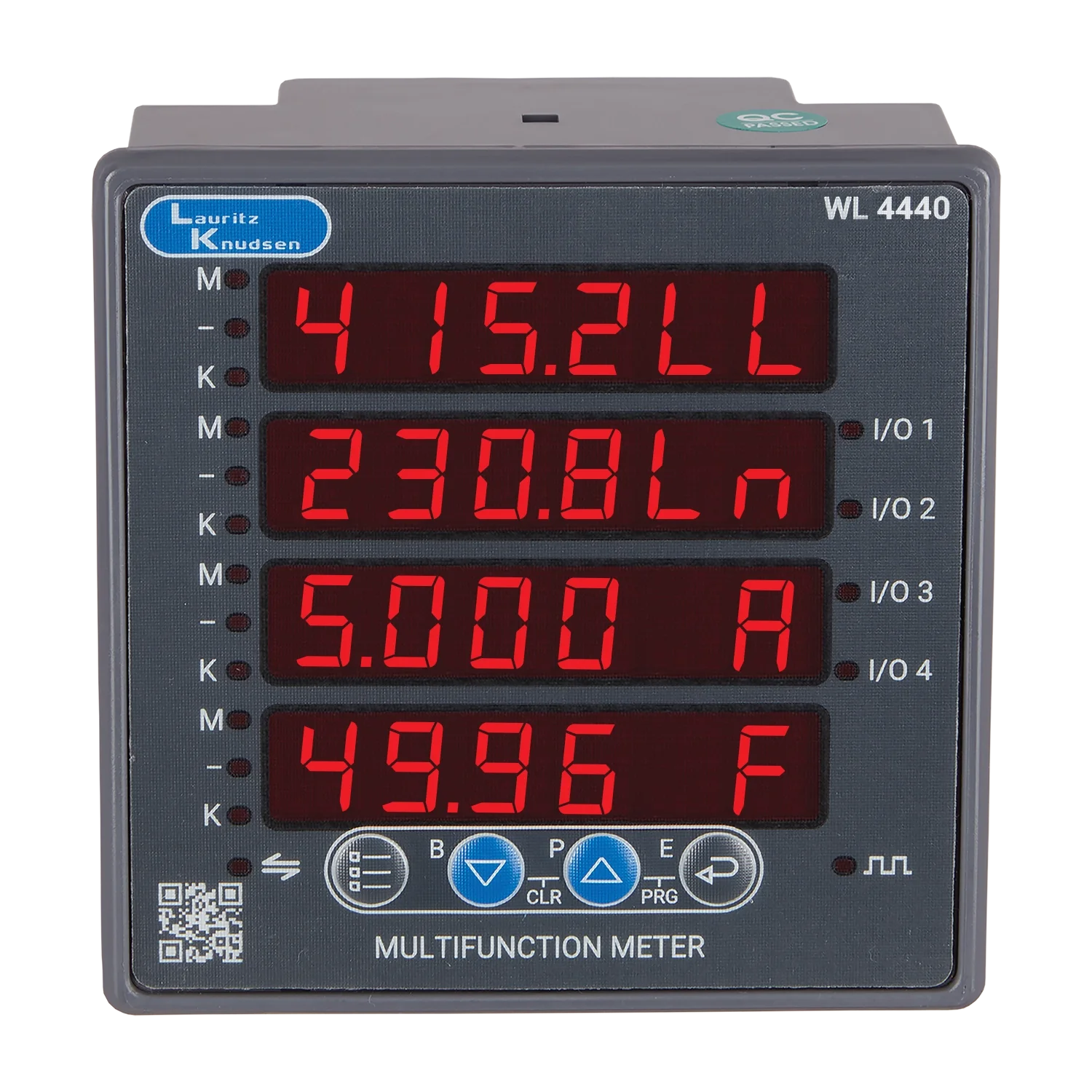

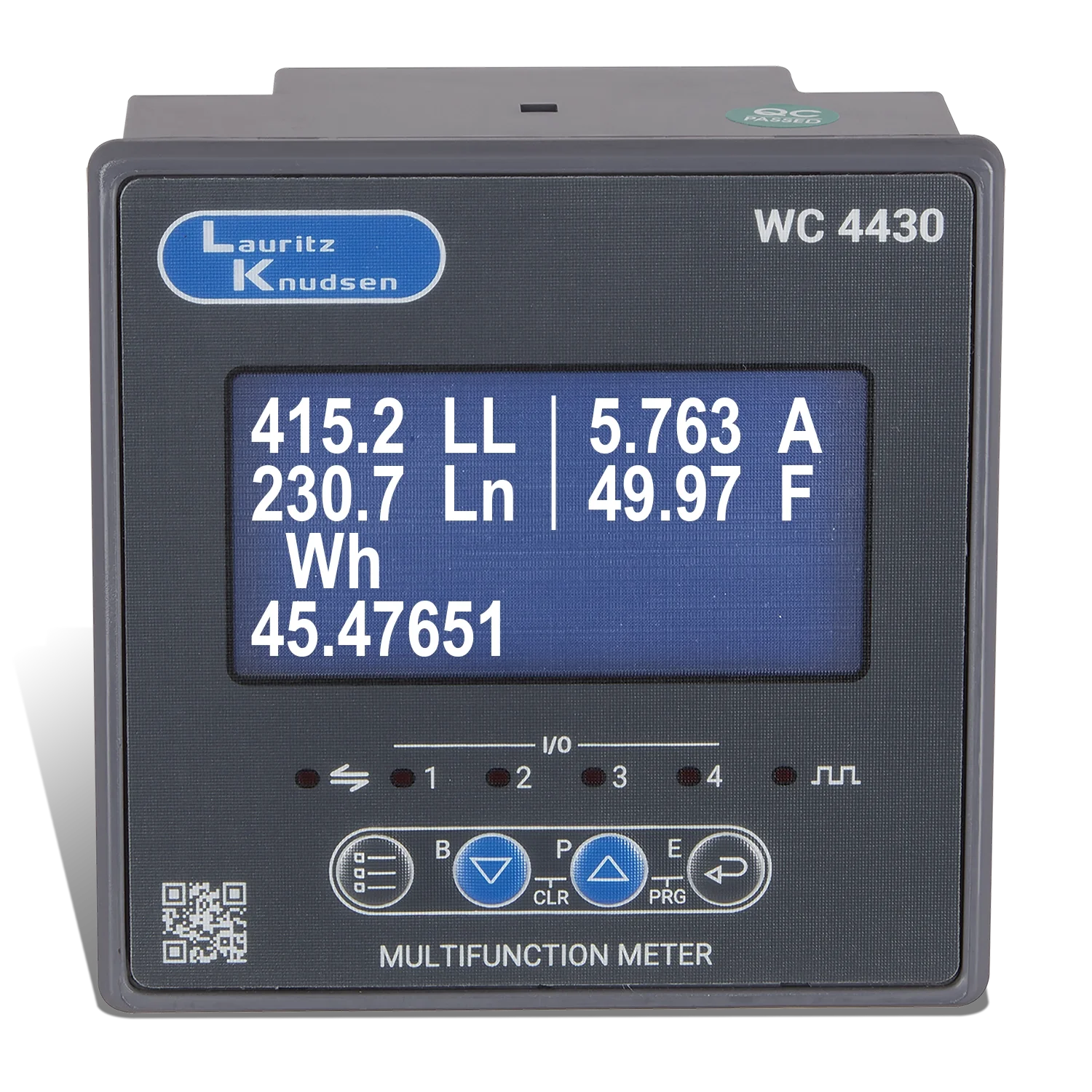

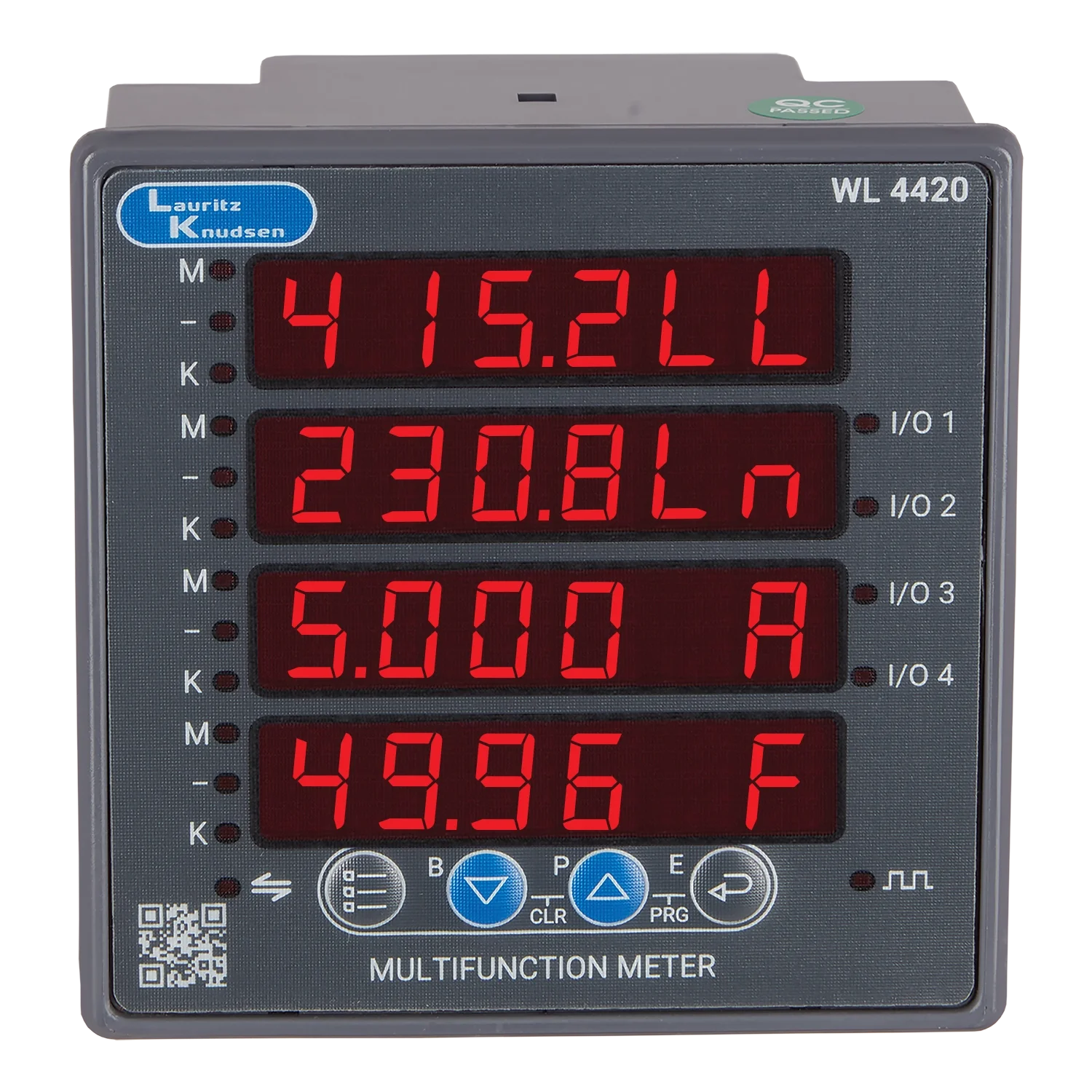

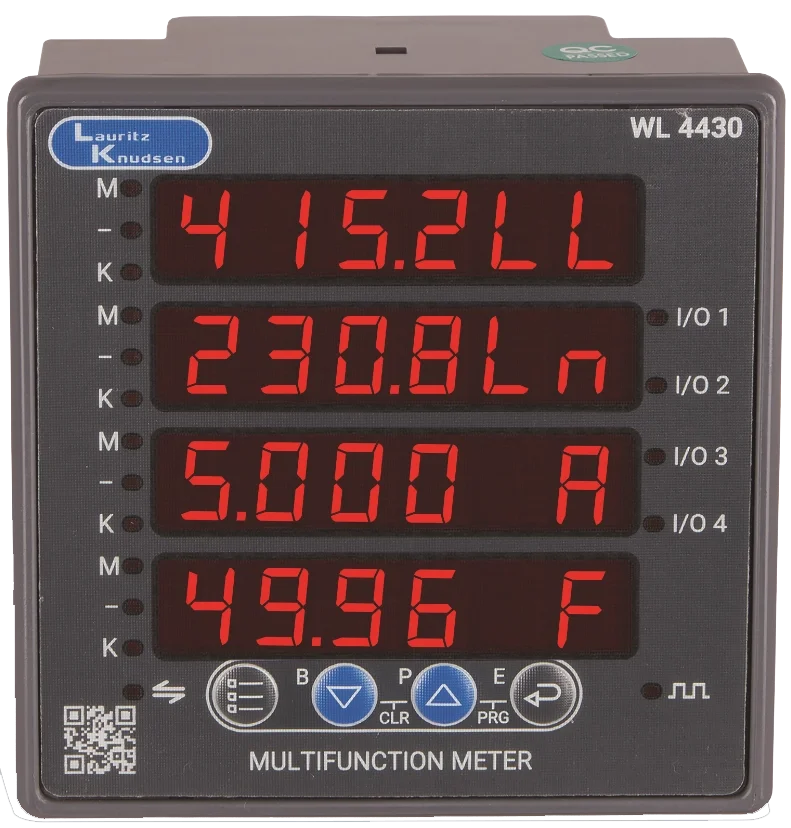

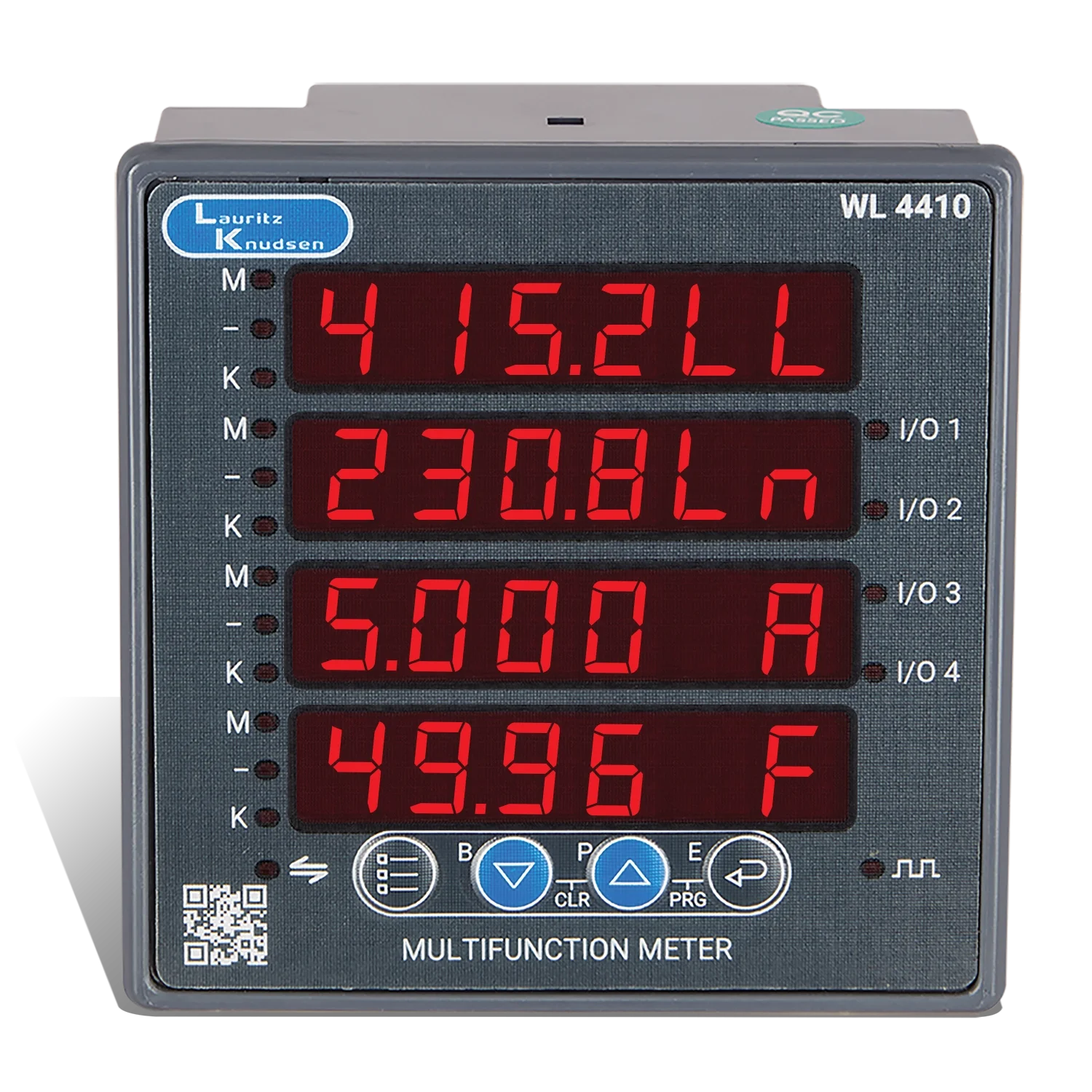

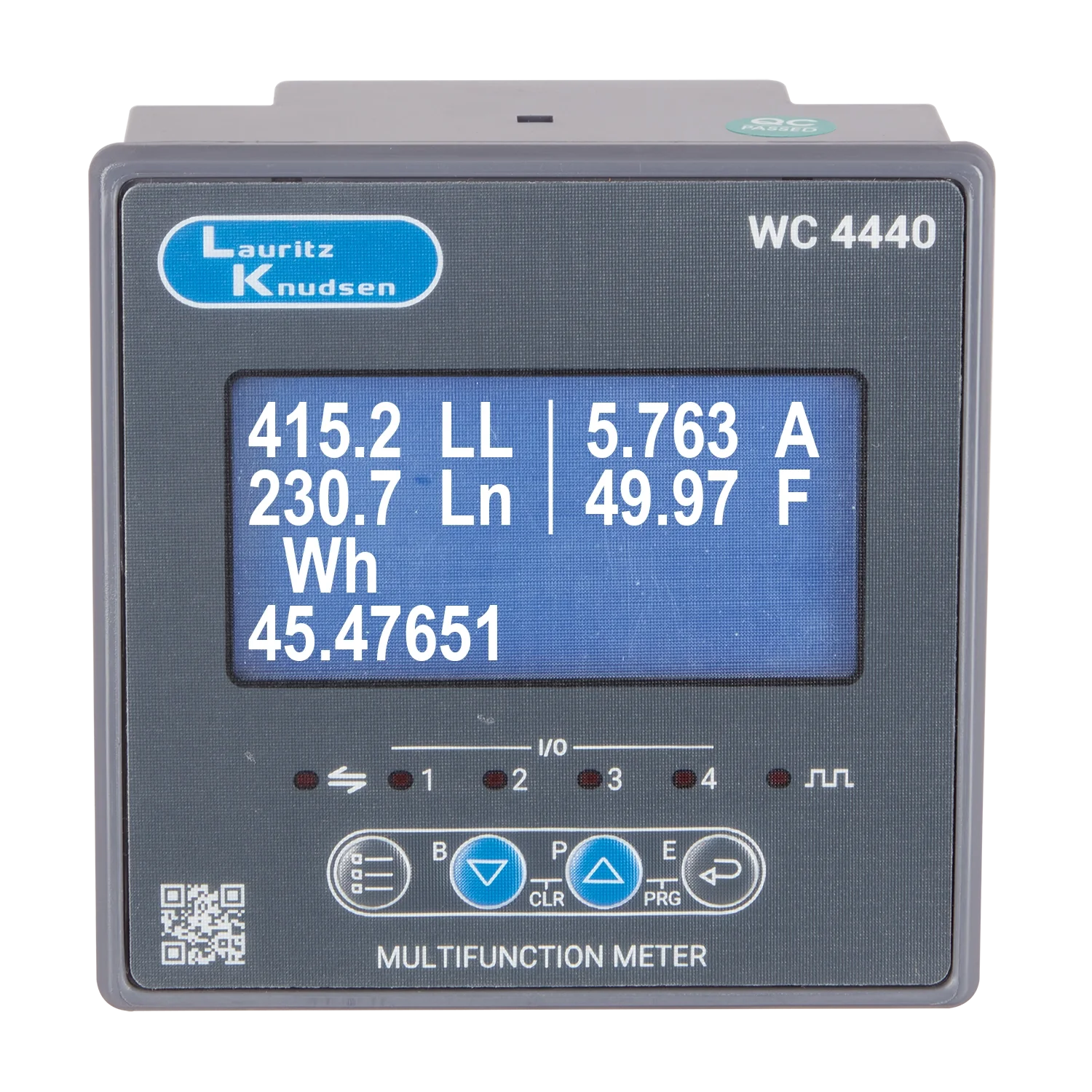

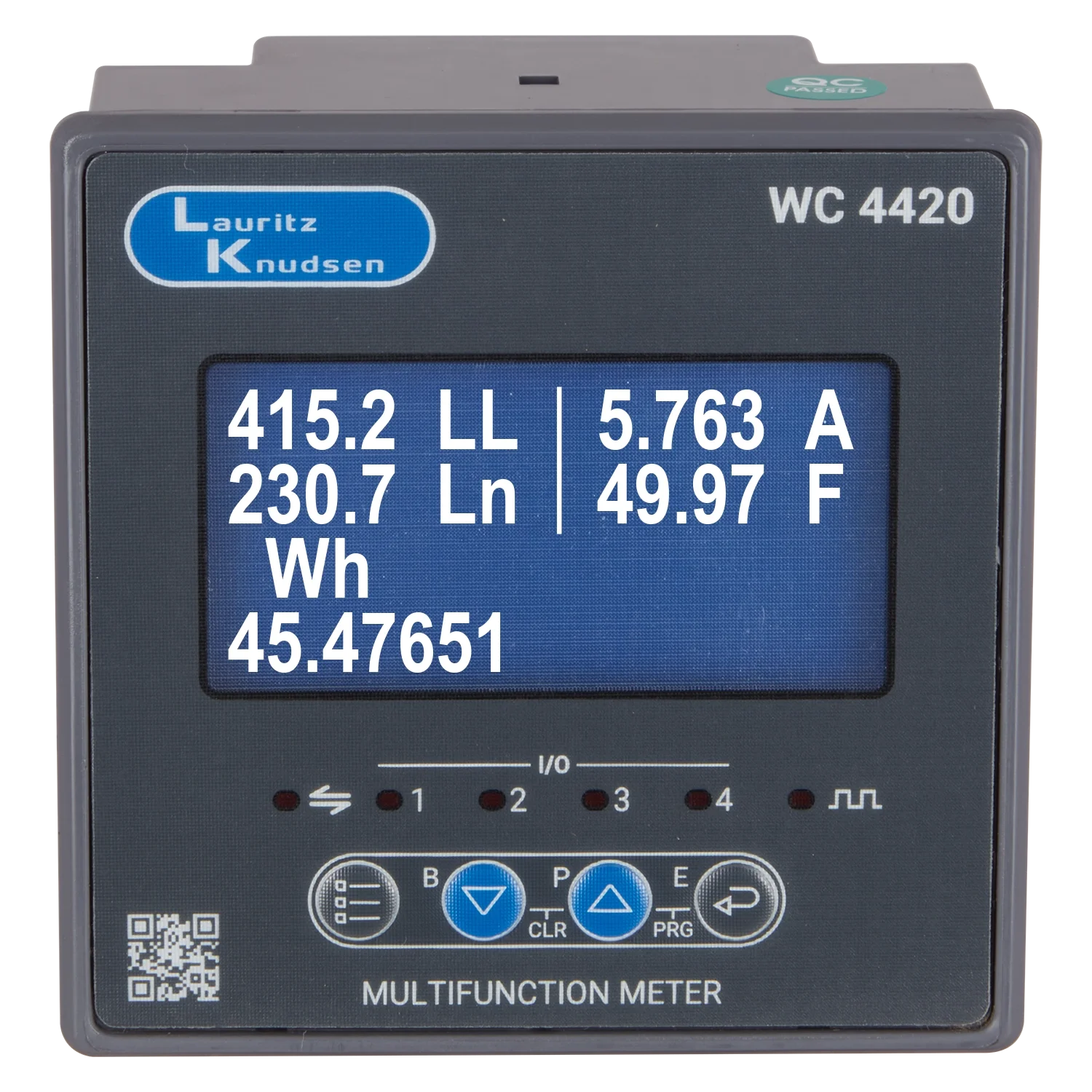

Range

Benefits

Real-time Monitoring

Provides immediate visibility into electrical parameters, allowing for quick decision-making and proactive troubleshooting.

undefined
Accuracy

Offers precise measurement of various electrical parameters, ensuring reliable data for monitoring and control.

undefined
Versatility

Capable of monitoring a wide range of parameters including voltage, current, power, energy, and more, making them suitable for diverse applications.

undefined
Easy Integration

Can be seamlessly integrated into existing electrical systems, offering flexibility and convenience.

undefined
Enhanced Safety

Contributes to improved operational safety by providing accurate data for monitoring and maintaining electrical systems.

undefined
Remote Monitoring

Some digital panel meters support remote monitoring capabilities, enabling monitoring from a centralized location.

alt Text

Features

  • Configurable for 3 Phase 4 Wire, 3 Phase 3 Wire, 1 Phase
  • LED & LCD Display options
  • Accurate Measurement as per IEC62053-21 & 22. (Class 1, 0.5, 0.5s, 0.2,0.2s)
  • 128 Samples per Cycle
  • Site Selectable Configuration
  • Can be used for LT / HT Connections
  • With & Without Communication – RS485 or Modbus TCP/IP
  • AC/DC (Universal) Aux Supply
  • Parameter Auto Scrolling & Freeze Mode
  • Password Protection
  • DIDO/AIAO Option available (in Selected Models)
  • Direct Navigation to Basic, Energy & Power Parameters

Specifications

  • Auxiliary circuit

    80 - 300VAC/DC (for AC @ 40Hz to 60Hz).

  • Measuring circuit

    Input voltage – 50 – 520VLL

    Input Current: 1A / 5A Site Selectable

  • Communication

    RS485 or Modbus TCP/IP

  • Bezel Dimensions

    96 X 96 X 58 mm

  • Product Weight

    300 gms

  • Measurement Category

    CAT III

  • Pollution Degree

    2

  • Protection

    IP54 at Front & IP 20 at Terminal

  • Operating temperature

    -10 Deg C to +55 Deg C.

  • Storage Temperature

    -25 Deg C to +70 Deg C.

  • Humidity

    5% to 95% relative humidity non-condensing

  • Certification

    CE & ROHS

Applications
