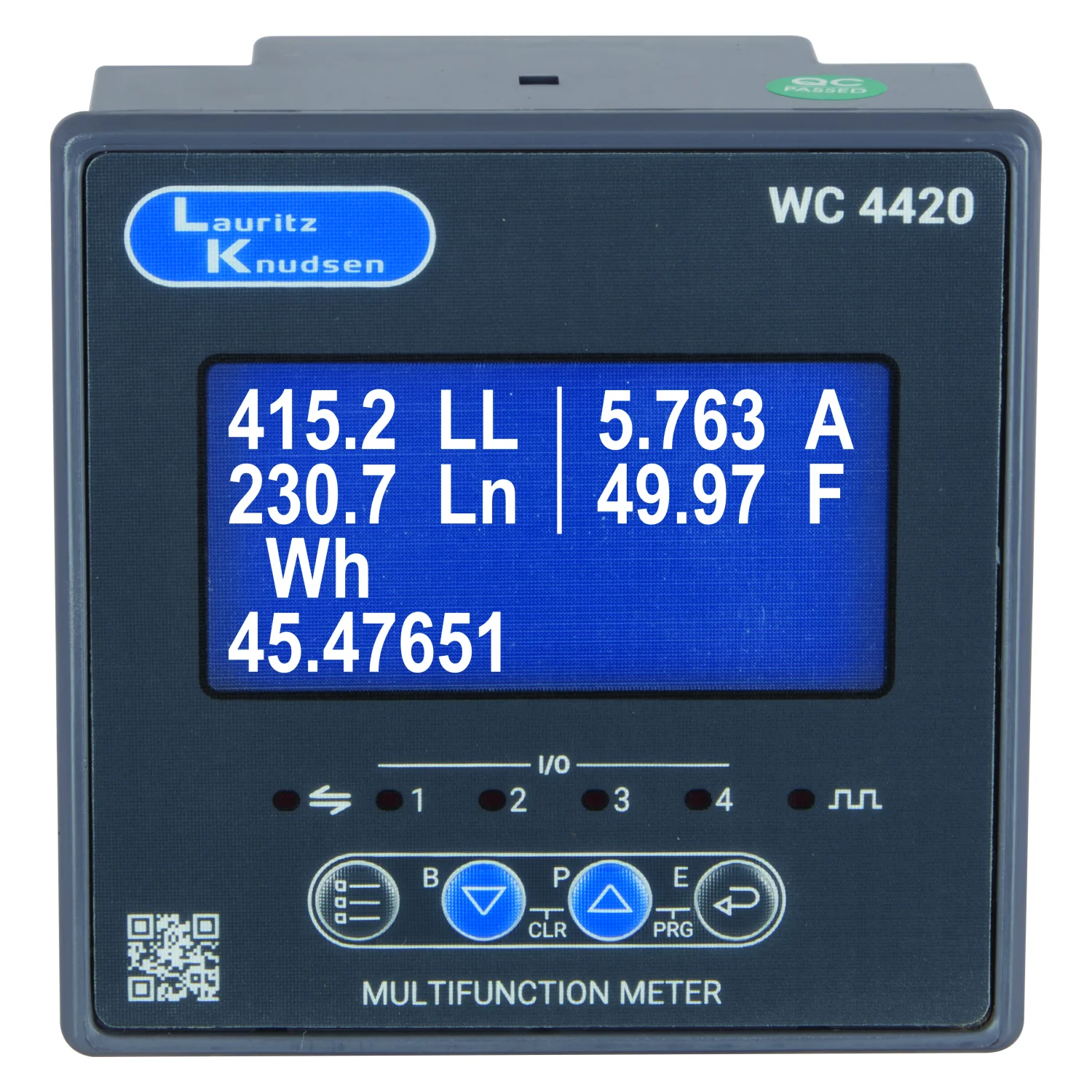

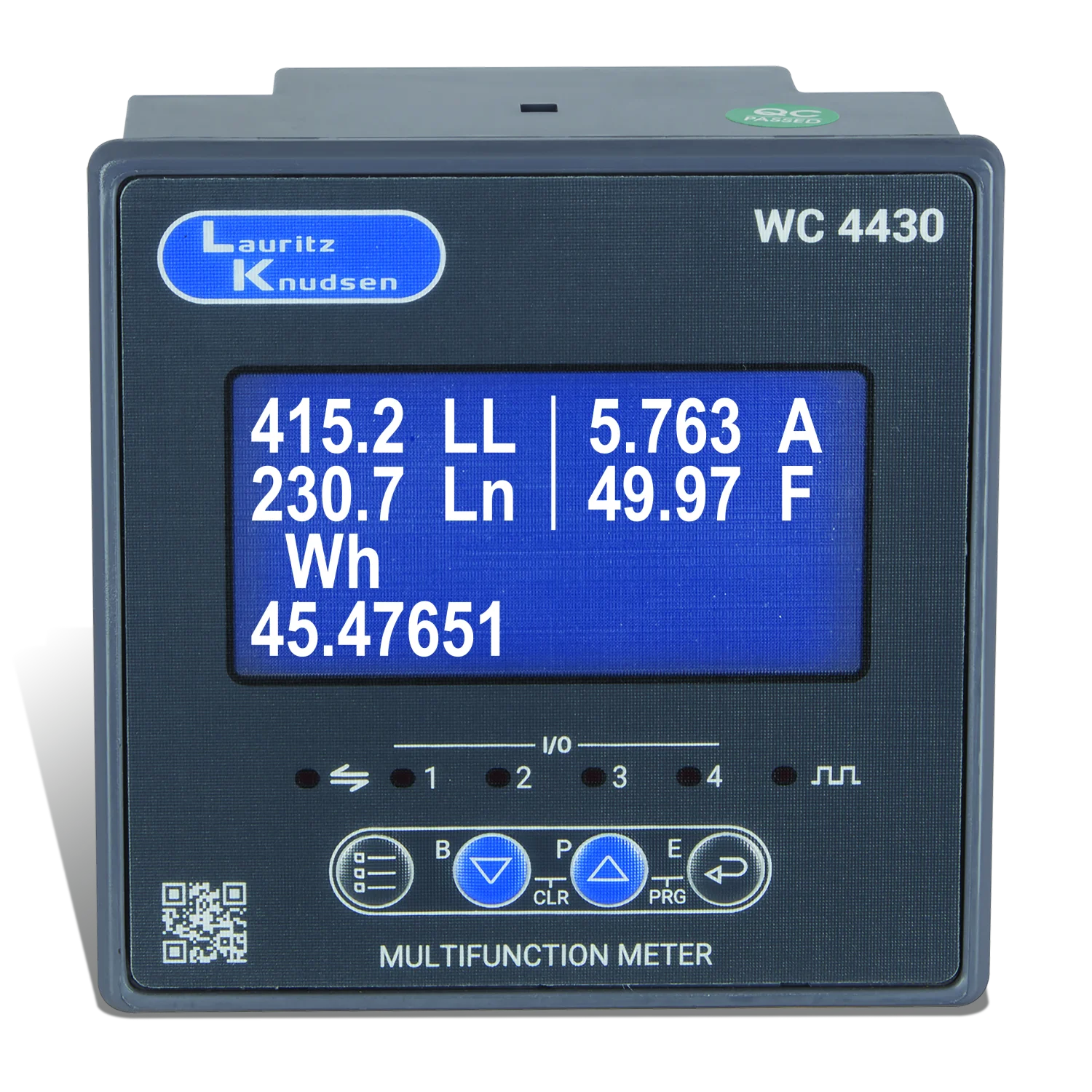

Our Advanced Multifunction Meters, the epitome of comprehensive monitoring solutions. These meters not only cover all basic parameters but also excel in expert load monitoring, offering Total Harmonic Distortion (THD) and individual harmonics measurement up to the 31st order for Voltage and Current. With Maximum Demand measurement and Real-Time Clock, precise energy consumption insights are at your fingertips. The phase-wise Voltage and Current waveforms displayed on the LCD meter provide real-time critical data visualization, while the "My Favourite" screen option lets users tailor the display to their specific needs. Additionally, the independently programmable Analog output allows for versatile configurations, making it a must-have for various setups. Moreover, choose from RS485 and Ethernet options available in both LED and LCD screens.
Range
Benefits
Provides immediate visibility into electrical parameters, allowing for quick decision-making and proactive troubleshooting.
Offers precise measurement of various electrical parameters, ensuring reliable data for monitoring and control.
Capable of monitoring a wide range of parameters including voltage, current, power, energy, and more, making them suitable for diverse applications.
Can be seamlessly integrated into existing electrical systems, offering flexibility and convenience.
Contributes to improved operational safety by providing accurate data for monitoring and maintaining electrical systems.
Some digital panel meters support remote monitoring capabilities, enabling monitoring from a centralized location.
Capable of recording and storing historical data, which is valuable for analysis, diagnostics, and compliance purposes.
Features
Specifications
Auxiliary circuit
80 - 300VAC/DC (for AC @ 40Hz to 60Hz).
Measuring circuit
Input voltage – 50 – 520VLL Input Current: 1A / 5A Site Selectable
Communication
RS485 or Modbus TCP/IP
Pollution Degree
2
Protection
IP51 at Front & IP 20 at Terminal
Operating temperature
-10 Deg C to +55 Deg C.
Storage Temperature
-25 Deg C to +70 Deg C.
Humidity
5% to 95% relative humidity non-condensing
Certification
CE & ROHS
Applications
