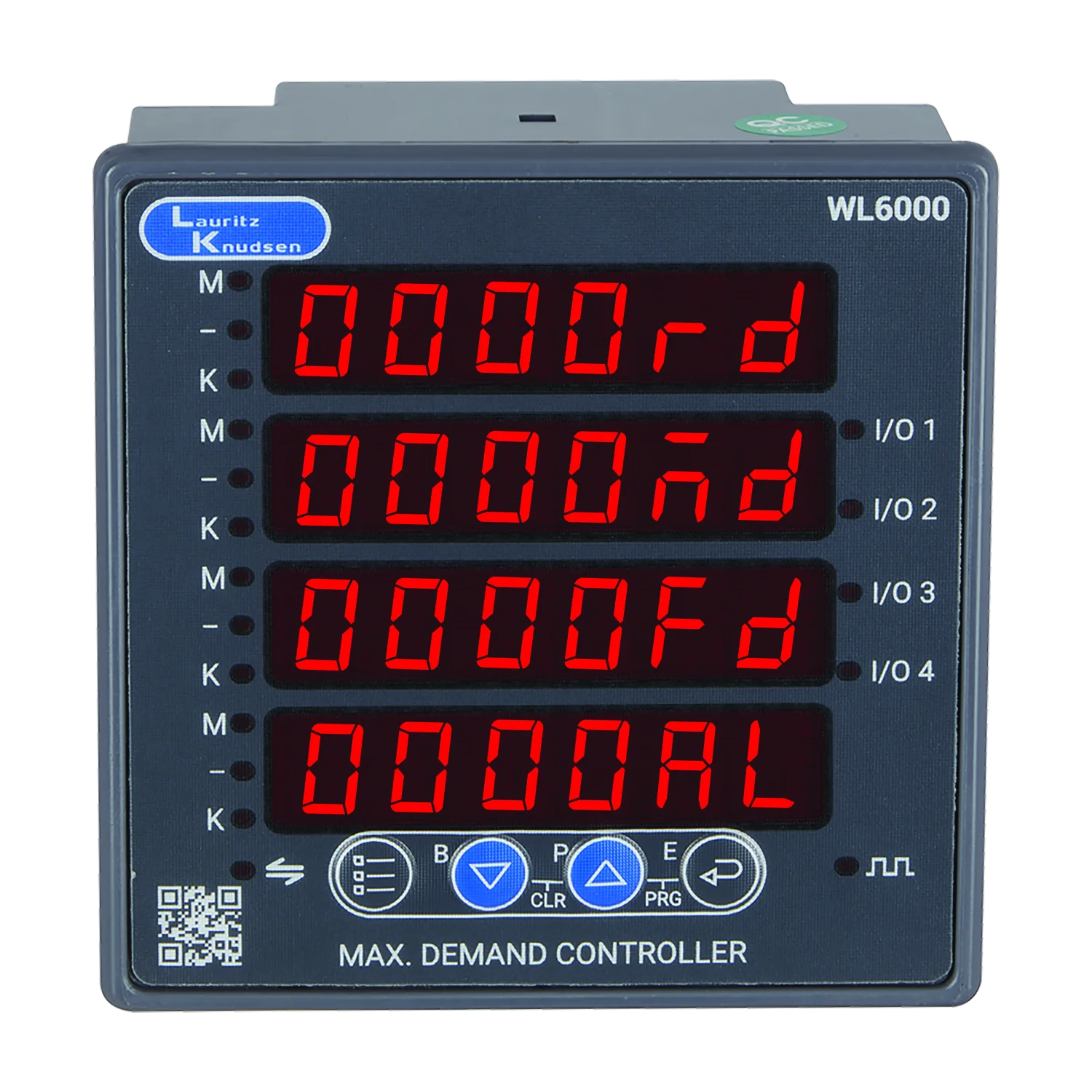

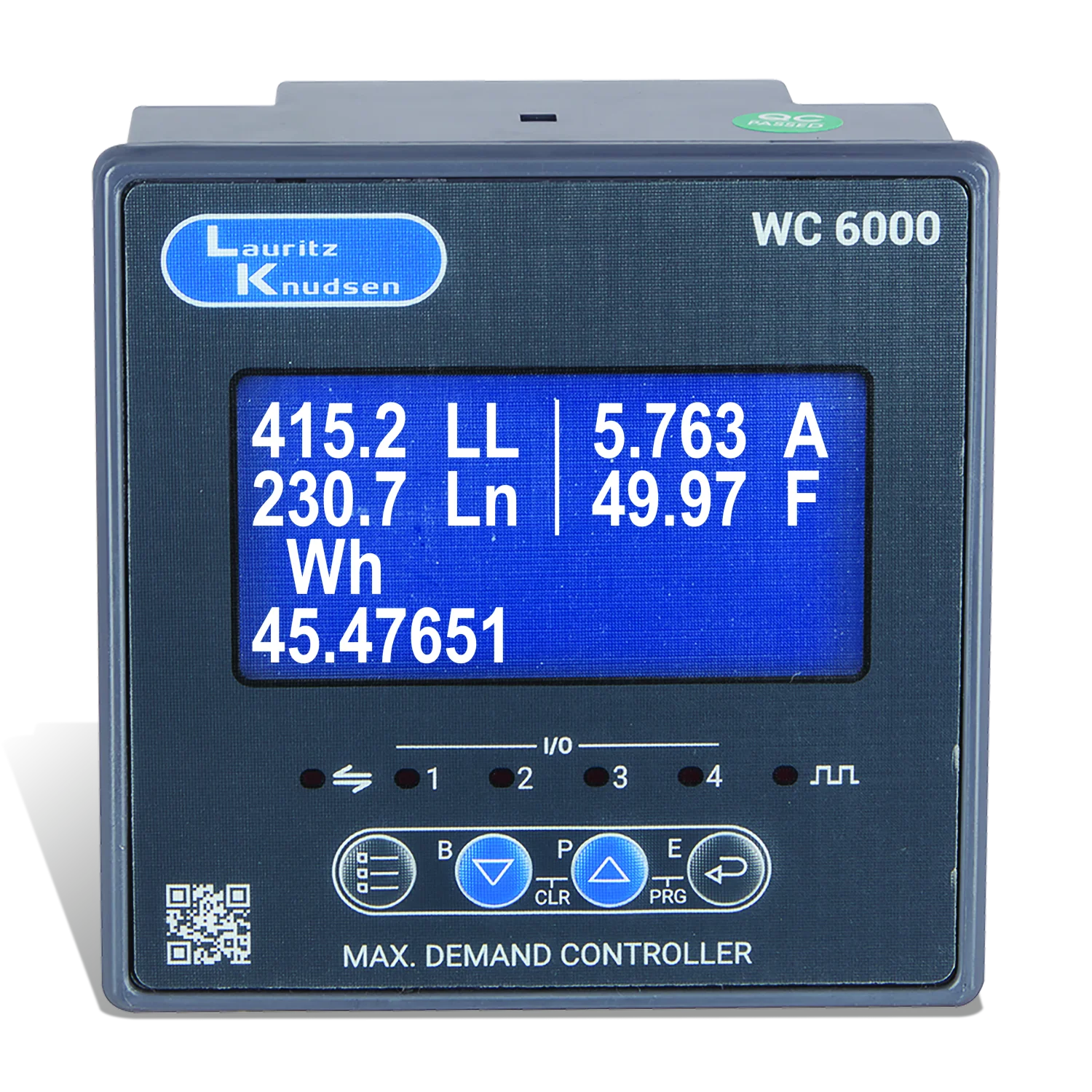

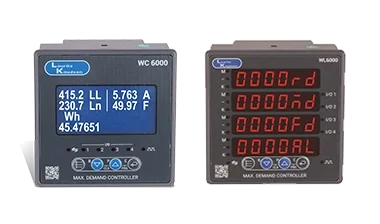

Maximum Demand Controllers (MDCs) are vital for managing power usage effectively. With built-in Maximum Demand (MD) monitoring and 4 digital outputs for tripping or alarms, MDCs enhance operational safety and efficiency. These devices monitor key basic Parameters with parameters like Total Harmonic Distortion and individual harmonics, ensuring the quality of power supply. Moreover, they play a crucial role in forecasting demand parameters, allowing proactive management of power consumption. By providing real-time insights and enabling pre-emptive actions, MDCs help optimize energy usage, minimize downtime, Data logging feature, and prevent overloading, ultimately contributing to cost savings and a more reliable electrical infrastructure.
Range
Benefits
Provides immediate visibility into electrical parameters, allowing for quick decision-making and proactive troubleshooting.
Offers precise measurement of various electrical parameters, ensuring reliable data for monitoring and control.
Capable of monitoring a wide range of parameters including voltage, current, power, energy, and more, making them suitable for diverse applications.
Can be seamlessly integrated into existing electrical systems, offering flexibility and convenience.
Contributes to improved operational safety by providing accurate data for monitoring and maintaining electrical systems.
Some digital panel meters support remote monitoring capabilities, enabling monitoring from a centralized location.
6 Demand and 6 Energy option with MD occurrence captured for each TOD
4 relay outputs available for proper load control / Alarm configuration
Terminals with sealing provision (optional)
Capable of recording and storing historical data, which is valuable for analysis, diagnostics, and compliance purposes.
Features
Specifications
Auxiliary circuit
80 - 300VAC/DC (for AC @ 40Hz to 60Hz).
Measuring circuit
Input voltage – 50 – 520VLL Input Current: 1A / 5A Site Selectable
Communication
RS485 or Modbus TCP/IP
Bezel Dimensions
96 X 96 X 58 mm
Product Weight
300 gms
Measurement Category
CAT III
Pollution Degree
2
Protection
IP54 at Front & IP 20 at Terminal
Operating temperature
-10 Deg C to +55 Deg C.
Storage Temperature
-25 Deg C to +70 Deg C.
Humidity
5% to 95% relative humidity non-condensing
Certification
CE & ROHS
Applications
